Axxon PSIM Software

Imagine the Possibilities

Imagine a system that no longer needs a security guard to physically watch every camera, monitor or sensor so you can catch improper behavior or initiate actions when an incident occurs.

Imagine a platform that integrates all your security and business systems — from fire and water sensors to access cards and infrared detection.

Imagine a system that's intelligent enough to interpret people, actions and events and enforces fast, automatic actions when necessary. A system that helps employees become more efficient, more vigilant, and more effective in reducing and preventing fraud, vandalism, accidents, and other issues.

Imagine all this...with extreme simplicity, flexibility, and scalability.

Axxon PSIM Software

What is Axxon PSIM?

Imagine a system that no longer needs a security guard to physically watch every camera, monitoAxxon PSIM is a remarkably advanced distributed physical security information management(PSIM) software platform that combines intelligent video analytics, universal IP connectivity and event-driven automation capabilities in a single environment.r or sensor so you can catch improper behavior or initiate actions when an incident occurs..

The purpose of Axxon PSIM is to help your business attain a higher level of security than ever before — with less cost and less effort.

Axxon PSIM software platform succeeds in giving you these results because it has the built-in intelligence to recognize events as they occur, and the ability to respond appropriately. It also has the capability to distil and present information to support smart, timely decision-making. It achieves this by aggregating data from a wide range of devices and systems, analyzing data more intelligently, and automating processes that could never be automated before..

Because it's built on an object-oriented architecture, the software is easy to install, use and manage and can be easily scaled to match your changing requirements. It's extremely flexible, so you get all the functionality and capabilities you need without paying for features you don't want..

And, because Axxon PSIM is an integrated IP-based platform, you increase the value of your existing systems and avoid the cost and effort of replacing legacy systems. As a result, you can better protect people and facilities, prevent asset loss and damage, and improve business efficiency, all at the same time..

Axxon PSIM

Axxon PSIM Core Features

Video Surveillance

Intelligent video surveillance is at the core of Axxon PSIM’s power to protect people, facilities, and assets with greater ease and efficiency.

Learn More

Audio Processing

Maintaining a truly secure environment requires more than just a watchful eye. Axxon PSIM’s networked audio module enhances your access to actionable information.

Learn More

IP Video

Clearer images. Easier search and retrieval. Lower maintenance. These are just a few of the many benefits of IP-based video systems.

Learn More

Integration

Peace of mind doesnt have to be difficult. Right out of the box, Axxon PSIM gives you 100% compatibility with legacy hardware and software. Customization enables you to integrate Axxon PSIM with the rest of your IT systems. HR, finance, and other databases can be linked with the system to provide organization-wide security intelligence.

Learn More

Automation

When it comes to security, you need a system that works so you dont have to. Axxon PSIM platform has the built-in intelligence to recognize security events as they occur, and the ability to respond appropriately.

Learn More

Handheld and Mobile Access

Video monitoring, remote video surveillance and security system management - now in the palm of your hand!

Learn More

Specifications

Main Features
Object Orientation: Anything connected to Axxon PSIM (a camera, for example) is organized and represented as a virtual software object to the end user. Users don't have to worry about the type of device, how it's connected, or where it's mounted — they can control all devices the same way.
Programming: Basic and advanced programming scripts and macros allow users to configure a wide range of automated response actions.
Schedule: Unlimited time zones. System actions can be configured to occur at specific times or in case of specific security events. Weekday, weekend, and holiday scheduling can be customized.

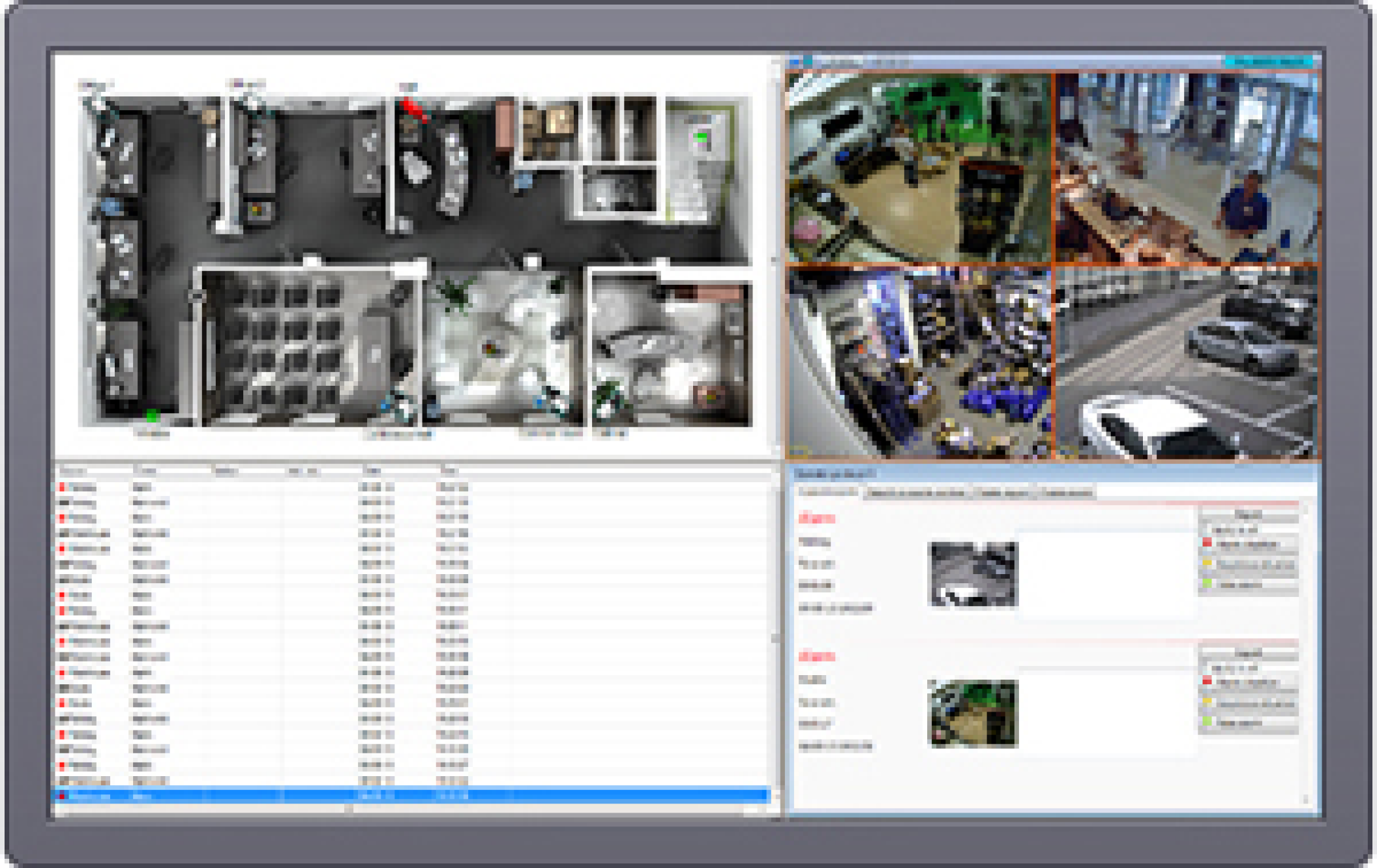

Map: Create a multi-level site map in .bmp format and label specific alarm devices. Automatically zoom to the appropriate map layer or object upon alarm. One-click access to real-time video flow from any connected device.
Event Display: Easily view up to 1000 security events per day. Quick security event configuration via mouse click.
Audible Notification: Configure a sound alert to follow specified security events. Requires a soundboard. Can be set up for single or dual speaker configuration.
Object Grouping: Users can group virtual software objects by area and type to enhance desktop organization and enable quick access.
Interface Languages: Arabic, Bulgarian, Chinese Simplified (Singapore), Chinese Traditional, Croatian, Danish, Dutch, English, French, German, Czech, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Serbian, Slovak, Spanish, Turkish.
Video Surveillance Module
Cameras: Unlimited number of cameras in a distributed system. The number of cameras per server depends on its performance.
Video Boards: Each computer can have a maximum of 4 boards with software compression and a maximum of 6 boards with hardware compression of the same type.
Capture Boards: Supports TUAN FS-115, FX-4, FX-8, FX-16, WS-16 and Stretch VRC-6008 and VRC-6416 capture boards. Line audio input included.Built-in video amp offers onboard brightness, contrast and color saturation control; also provides gain control to protect card from damage during thunderstorms or high voltage interference. Anti-aliasing prevents jagged edges. WatchDog anti-hang-up timer monitors the system power supply and provides system restart on system hang-up.ADG706 series external multiplexers enable faster input video signal switching. Analog composite video output, auto channel scrolling and alarm switching possible. FS series cards can have optional I/O modules of either 16 digital inputs+ 4 digital outputs or 4 ins and 4 outs.
Display: The number of cameras per workstation is not limited by software and only depends on the workstation performance.
Monitor: Connect multiple monitors to a single video server for simultaneous live or recorded video viewing.
Motion Detector: Low error probability. Preset image size and sharpness. Visual indication of moving object's edges (optional). Configure separate detection area and alarm recording for each camera, with specified pre and post-recording periods. Redistribution on resources in case of alarm.
Compression: Motion-Wavelet algorithm. Image size ranges from 2-80 KB and depends on resolution, color, compression rate and detalization.
Recording Format: Wavelet fragments 500 frames by loop with 100MB buffer for every local hard drive.
Local Recording: Separate for every camera.
Playback: Multiple cameras at a time. Video archive can be indexed automatically at system startup for quick data search. Search archives by date and/or time. Frame-by-frame bi-directional playback. Up to 25 fps playback speed. External decoder and viewer utilities. x2, x4, x8 fast playback.
Digital Zoom: x2, x4, x8, x16
Contrast Enhancement: Sharper and more detailed recording under low lighting conditions.
Modes: Independent recording, playback and display modes. Playback and display work in conjunction on single virtual screens only.
TCP/IP Support: Configuration and control over all devices via dialup, LAN or ISDN.
Remote Control: Internet-enabled display and control over all cameras and PTZ devices. System includes a built-in web server.
Backup: Archive options include local and network drives. Configure for manual or automatic backup mode.
Export Options: Export images to JPEG. Synchronized audio and video data can be exported using any video codec to AVI for viewing outside of the system.
Interface Languages: Arab, Bulgarian, Chinese Simplified (Singapore), Chinese traditional, Croatian, Danish, Dutch, English, French, German, Czech, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Lithuanian, Polish, Portuguese (Brazil), Serbian, Slovak, Spanish, Turkish.
